About the Yale PT Ratchet Lever Hoist
The Yale PT ratchet lever hoist is made from pressed steel to provide the exceedingly low weight. This sturdy lever hoist has excellent reliability and is probably the most universal lever hoist in Yale’s collection.
The operating hand lever is short in design and incorporates an ergonomic rubber hand grip. The grip offers non-slip functionality whilst the lever length minimises the amount of effort needed to operate the hoist.
There is a free chaining mechanism as standard which enables rapid load attachment as the chain can be pulled through in both directions.
The chain used on these hoists is alloy steel link chain which has been zinc plated + yellow chromated finish to comply with all the necessary standards and regulations.
Both the top suspension hook and the lower load hook have been drop forged from non-ageing high tensile steel. The two hooks incorporate robust safety latches to ensure attachments remain safe until manually removed.
Yale PT Lever Hoist Options

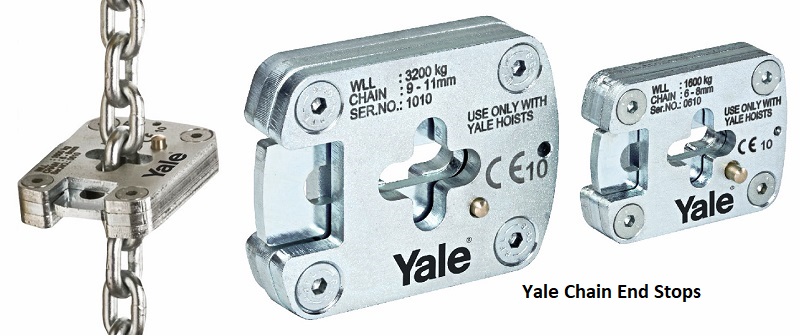

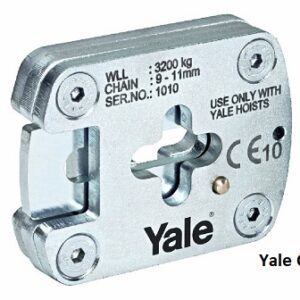

Yale chain stops (YKST) are available separately on request; these will prevent unwanted chain run through and offer extra protection against brake failure.

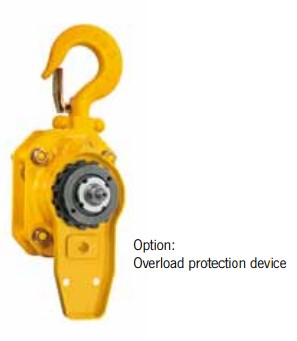

An additional optional extra comes in the form of a factory pre-set slip clutch, this will provide overload protection.
If you require the optional chain stops and/or slip clutch then please contact us where you will be able to get a precise quote and place an order.
Other Yale Hoists
As one of the market leaders in affordable lifting equipment its no wonder there is a vast selection of their hoists to choose from. Aside from the 6+ lever hoists there are also equal amounts of manual chain blocks and electric hoists plus a couple of pneumatic air hoists. There are also special options such as ATEX rated models and corrosion resistant models in most categories.
We also supply Yale cable pullers to lift, pull and tension your loads.
Whatever your hoisting needs you can rely on the Yale brand, supplied by a UK leading distributor – Lifting Hoists Direct.
Call us today on 01384 76961 foe any help you may need, or order directly online, its easy, quick and safe.
|Model PT||Capacity (KG)||Number of chain falls||Chain dimensions dxp (mm)||Lift with one full lever turn (mm)||Handle pull at WLL (daN)||Weight at standard lift (1.5m) KG|

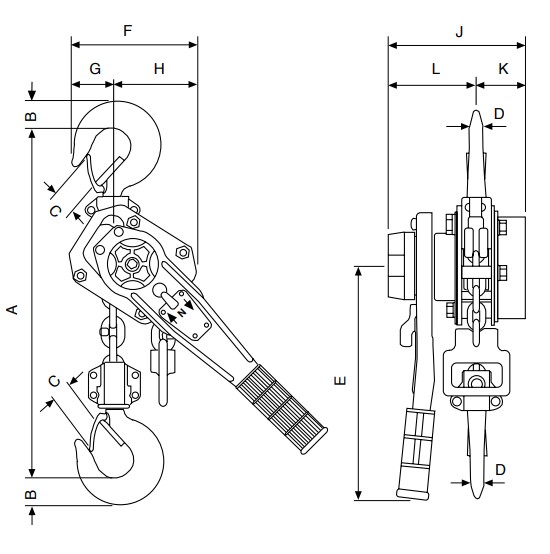

|A min, mm||290||330||430||580|
