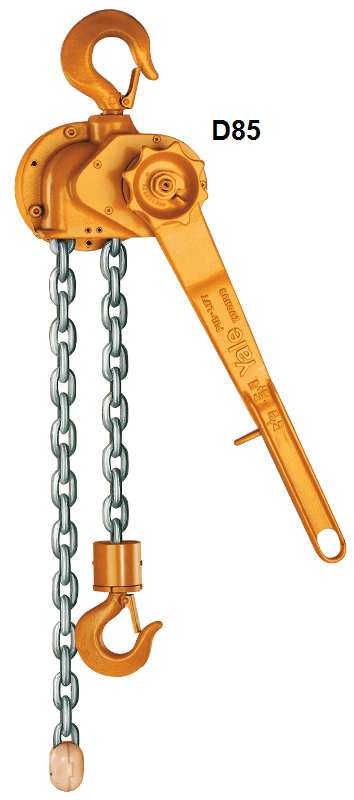

The Yale D85 pull lift is the original Yale ratchet lever hoist. It is the only lever hoist which can be referred to as a pul-lift.
Yale D85 Pull lift & C85 Features
The robust construction of these lever hoists / pull lifts include the hand lever, lower block and housing which are all manufactured from high tensile white malleable cast iron. The load sheave is made from graphite cast iron. Due to the ruggedness of the materials used during the manufacturing process the D85 lever hoist / pull lift is perfectly suited to heavy duty applications.
It is ideal for pipe setting, securing loads and spotting for example. The D85 lever hoist is commonly used in mining, fabrication work, ship building, construction and maintenance as well as in the rail industry.
The malleable cast iron housing cover is enclosed to provide added protection.
The graphite cast iron load sheave has been precision machined with pockets. This is to ensure the chain locates correctly and precisely on each and every movement. What’s more the accuracy of the fit ensures durability of the load chain.
Capabilities of the C85 & D85 Lever Hoists
The Yale C85 with the roller chain is perfect for use in overhead line work. It is commonly utilised throughout the electricity supply industry. The roller chain sprocket has been manufactured from chromium molybdenum steel and heat treated. The teeth have been precision machined so you can be assured of smooth operation.

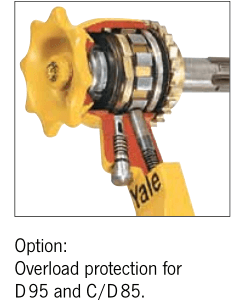

Both the D85 lever hoist /Pull lift and the Yale C85 are available with lifting capacities up to 10000kg. Further more they can be equipped with a couple of optional extras. A factory pre-set slip clutch can be added to provide overload protection. Free chaining systems can also be added as an optional extra. For the D85 we can also supply adjustable end stops for the chain if needed. Please notify us at the time of ordering if you require any of these extras.
|Model||Capacity (KG)||Number of chain falls||Chain dimensions dxp (inch)||Lift with one full lever turn (mm)||Handle pull at WLL (daN)||Weight at standard lift (1.5m) KG|
|PUL-LIFT C85 750||750||1||5/8″x 3/8″||115||38||8.7|
|PUL-LIFT C85 1500||1500||1||1″ x 1/2″||45||31||17|
|PUL-LIFT C85 3000||3000||1||1 1/4″ x 5/8″||36||40||22.2|
|PUL-LIFT C85 6000||6000||2||1 1/4″ x 5/8″||18||44||38|
|PUL-LIFT C85 10000||10000||3||1 1/4″ x 5/8″||12||44||67|
|PUL-LIFT D85 750||750||1||6×18.5||111||38||8.2|
|PUL-LIFT D85 1500||1500||1||9×27||45||31||16.3|
|PUL-LIFT D85 3000||3000||1||11×31||33||40||19.6|
|PUL-LIFT D85 6000||6000||2||11×31||17||42||32.9|
|PUL-LIFT D85 10000||10000||3||11×31||11||37||60|
|Model||PUL-LIFT C85 750||PUL-LIFT C85 1500||PUL-LIFT C85 3000||PUL-LIFT C85 6000||PUL-LIFT C85 10000|
|A min, mm||322||389||403||560||785|
|Model||PUL-LIFT D85 750||PUL-LIFT D85 1500||PUL-LIFT D85 3000||PUL-LIFT D85 6000||PUL-LIFT D85 10000|
|A min, mm||322||389||403||532||805|
