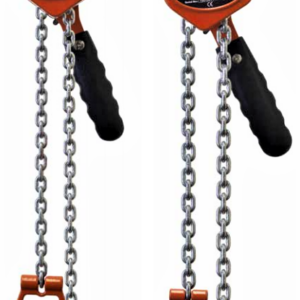

About the L4 Compact Lever Hoist

The L4 compact lever hoist is smaller than its larger heavy duty cousin. You can see the difference in size when you compare them. (Shown for the smallest models).

Compact; W (exc. Lever @ 150mm) = 68mm D = 90mm L (inside hook bowls) = 200mm

Heavy Duty; W (exc. Lever @ 265mm) = 121mm D = 148mm L (inside hook bowls) = 280mm

This compact lever hoist is supplied with a belt bag carry case making it really easy to carry around. As a result the carry case makes it perfect for working out on site. Furthermore can be used for lifting, pulling and also tensioning tasks. Likewise together with the fact that it can be operated in most orientations its versatility is outstanding.

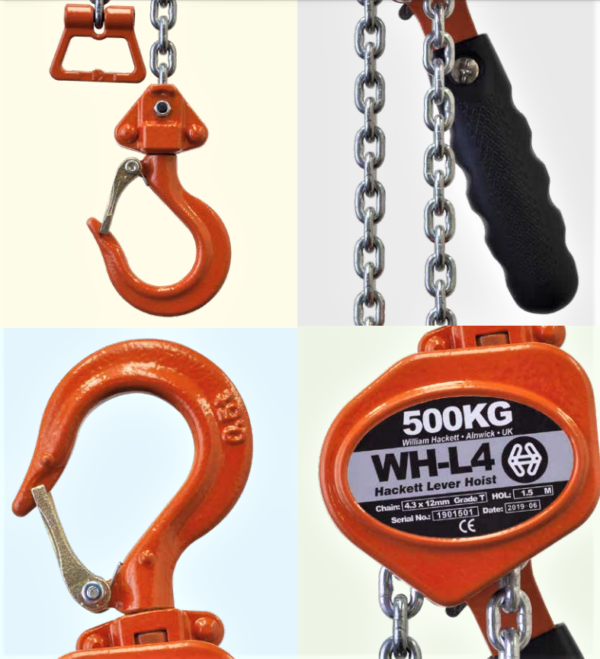

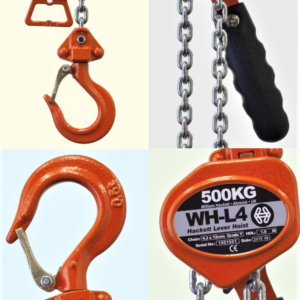

Hook safety latches, overload indicator marks, twin pawls and ergonomic chain end stop provide the safety features of this little pull winch. It has been proof tested to 1.5 times the stated load limit and has a safety factor of 4:1. The L4 compact can be used in temperatures ranging from -10 to +50 degrees C. What’s more it is manufactured in the UK.

L4 Compact Pull Winch Features At A Glance

• 4:1 safety Factor
• 250kg or 500kg models
• Meets UK, EU, USA & AUS Standards
• Light load capability at 2% of the WLL
• Twin pawls
• Overload indicator marks (to check for stretch when measured; A sign of overloading)
• Robust & ergonomic end stop to give the user a firm grip to adjust chain
• BS EN818-7 Grade T (8) standard compliable load chain
• Carry case included
• Proof tested to 1.5 x WLL
• Made in the UK

Similar Hoists

At Lifting Hoists Direct you will be able to find many hoists of this lever type variety. For example another compact, carry version from Kito and the Yale handy lever hoist. However for more standard sized varieties there are lots to compare from key manufacturers. Specialist varieties can also be found, for example the ATEX hoisting and Sub-sea hoisting categories.

Chain blocks are another type of manual hoist for vertical, inline lifting. However there are the range of cable pullers which can also be used in any orientation for lifting, pulling and tensioning, these are worth a look for comparison to ensure you get the best type of hoisting equipment for your operation.

Contact Us about the L4 compact lever hoist

If you wish to make an enquiry regarding price, specifications or delivery you can either call us on 01384 76961 or email us on the rapid enquiry form. Any questions you may have will be answered to the best of our knowledge and advice will happily be given.
