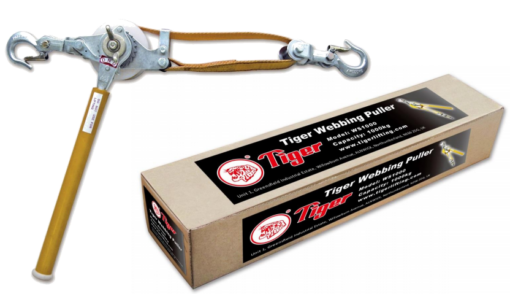

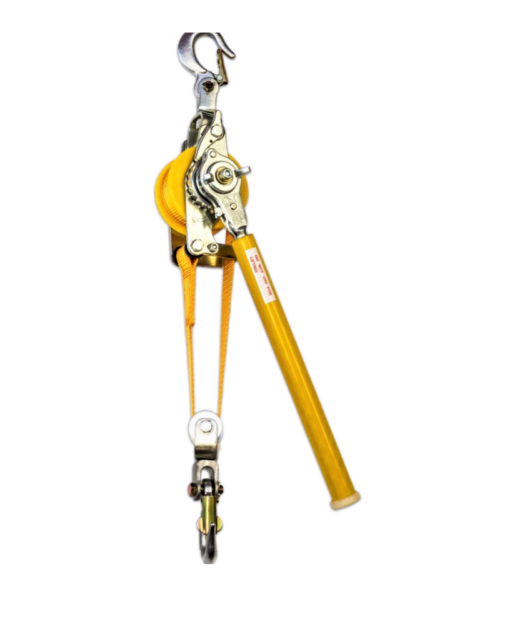

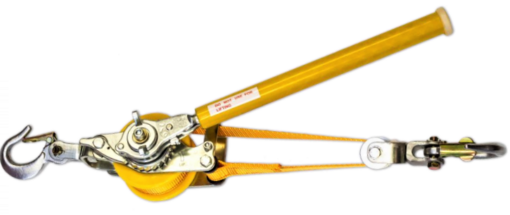

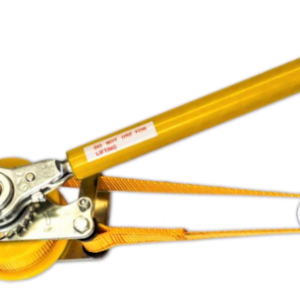

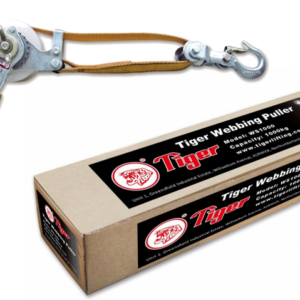

About the Tiger Webbing Puller Lever Hoist
Tiger webbing puller models are designed with hot line applications in mind. The webbing is made from polyester which provides non-conductive and insulating properties. Furthermore the handle is made from fibre reinforced plastic which is insulated. Thus increasing safety when used for tensioning electrical conductors.
Because the lever is able to fully rotate it can be operated from any direction. Thus making it easy to use in any environment, especially enclosed or awkward areas.
Both the forward and reverse modes have a load holding mechanism. Consequently the load can be held in any position until it is moved again. The direction of pull is changed by one click on the ratchet tab so changing the pulling orientation is very easy.
Tiger Webbing Puller Features at a Glance
- 1 tonne & 1.5 tonne capacity options
- 360 degree fully rotating lever
- Free wheeling mode for easy load attachment/anchoring
- 4:1 safety factor
- Non-conductive web strap (when clean & dry)
- Automatic brake (1 notch at a time operation)
- Light & compact design
- Insulated handle
- 3 positions – neutral (free-wheeling) up or down
- Voltage proof test 15kV
Other Ratchet Lever Hoists
Above all Lifting Hoists Direct can supply a wide range of ratchet lever hoists and pull lifts as they are sometimes called. However most standard lever hoists will use chain rather than webbing. Many top brand names can be found within this category. For example Yale, Kito, LGD, Viper and more. However you will also find corrosion resistant options as well as subsea models (in the subsea hoisting category). Furthermore there are also spark resistant models, industrial lever hoists, handy, compact models and many more options.
In conclusion browse the full range to compare what’s available to ensure you choose for your needs. Help with your choice is always at hand with a couple of choices. Firstly with a quick call to 01384 76961. Secondly you can also drop us an email with any enquiries you may have.
|Capacity ( tonne)||Strap Size (mm)||Lever Length (mm)||Maximum Length (mm)||Minimum Length (mm)||Weight (kg)|
|1||2 x 33||400||2000||420||3.2|
|1.5||2.2 x 40||460||2000||420||4.5|
