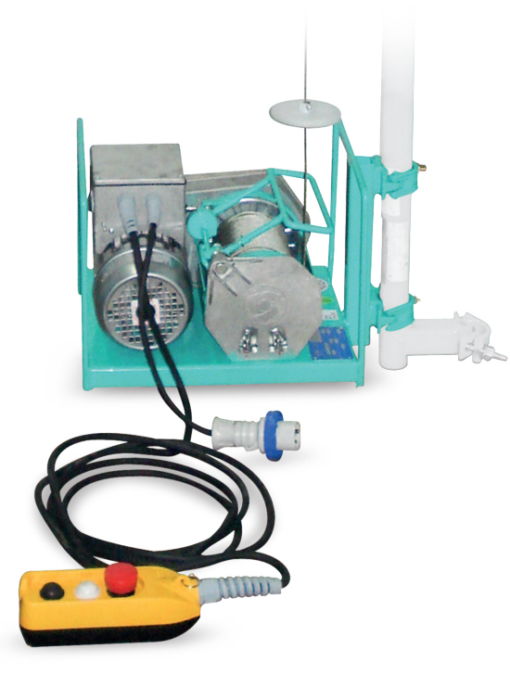

. About the Imer AP150 Scaffold Winch
With the Imer AP150 scaffold winch there is no need to carry the main hoist unit to the top of a scaffolding tower. The AP150 winch operates a little differently.
The main winching unit is base mounted, meaning it sits on the ground. However, depending on the height you need to lift materials you can position it on a higher level. Providing it is stable and of a suitable position to operate unhindered.
So, although you do not need to carry a hoist to the high lever where you need it, you will have to transport the swivelling scaffold bracket and hoist hook on the end of the wire rope. Though this is much easier than a heavy hoist.
The bracket clamps to a scaffold pole and can be pivoted into the required position thanks to its swivel action. The wire rope will need to be pulled out from the winch base unit and passed through the two pulleys located within the bracket. The load hook can then be extended down to attach to the load. This may be on any level or on the ground.
Lifting with the AP150 Winch
81 meters of 4mm diameter wire rope is supplied to attain the 40 meters maximum height of lift. And with an average of 30 meters per minute speeds when loaded the AP150 scaffold winch can handle loads up to 150kg efficiently.
This scaffold winch is operated via a pendant control. This comes with a 5 meter long cable for easy operation from a good distance away. This enhances the safety of the operator because he/she can remain out of the path of the moving load. The bracket the hoist fits to can be swivelled. Meaning the load can be easily be moved to the required position and therefore avoid any obstacles.
There are many scaffold hoist accessories which can be utilised with the AP150 scaffold winch to aid the moving of building materials. Brick baskets, liftable wheelbarrows or barrow chains and tipping buckets are just some useful accessories Lifting Hoists Direct can supply.
More Scaffold Hoists from Lifting Hoists Direct
Besides this scaffold winch and scaffold accessories, Lifting Hoists Direct can supply many other types of hoisting equipment. We have scaffold hoists and accessories from both Imer and TEA L’Europea available in a range of models with different properties and safe working loads. There are also builders gantry hoists available. Available with or without the necessary gantry frame needed to use this type of builders hoist. So if you work in the building/construction industry we can help with the movement of all your materials to maximise productivity and enhance safety of your workers and materials.
|Av. Full load lifting speed||m/min||30|
|Max. Working height||m||40|
|Wire rope diameter||mm||4|
|Motor power rate||kW||0.8|
|Motor running current||A||7.1|
|Machine weight (without bracket)||kg||50|
|SPL in operator position||dB(A)||<72|
|packing dimensions w/l/h||mm||410/540/350|
