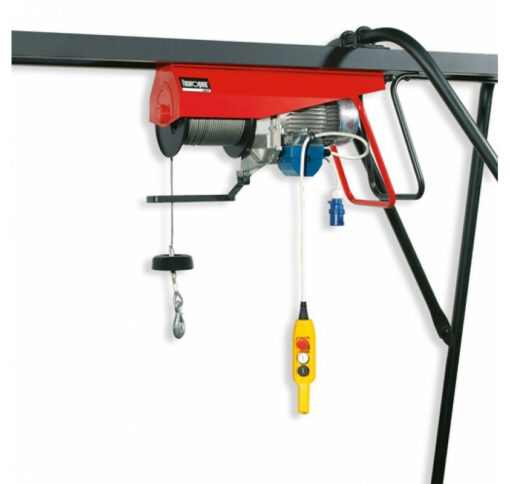

About the TEA HE500 Builders Gantry Hoist range
In the HE 500 builders gantry hoist collection there are both the single and three phase options. The HE500 builders gantry hoist is capable of lifting and lowering loads up to 500kg. To a maximum working height of 40 meters. The average lifting speeds vary slightly between the MF and the TF at 23m/min and 29m/min respectively. Full specifications can be found in the table below.

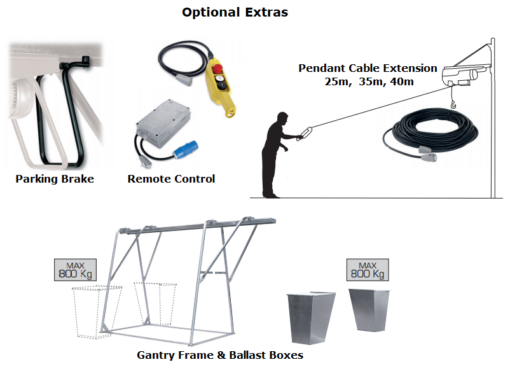

The HE 500 builders gantry hoist range is designed to be used with a counter balanced gantry frame. This is so goods can be lifted up the side of a building. Filled ballast boxes fitted to the rear provide the counter balanced weight. There is also the option of adding a parking brake to the frame for additional safety. You can purchase these separately if required.
Other options for the HE500 builders hoist include longer length pendant control cables. These are available in 25m, 35m or 40m options. If you prefer we can also supply a radio control function to make operation even easier.
More Builders Gantry Hoists
TEA L’Europea have other hoists falling into this category including a 500kg twin fall model, the HE300Mf, and the HE800 range which also includes single and three phase options. With a great range of accessories to further enhance the efficiency of these hoists such as tipping buckets, moving your materials around the construction site has never been easier.
Lifting Hoists Direct can supply all your TEA L’Europea equipment at great prices, however we can also supply similar products by Imer. Both of these brands excel in the construction industry and are also able to supply scaffold hoists and multiple accessories from them both too.
Contact us through the rapid enquiry form or contact page if you would like to drop us an email for a quote on multiple products or you can give us a call on 01384 76961, Monday to Friday 7am to 5pm.
|Model||HE 500 MF||HE 500 TF|
|Motor type||Single Phase||Three Phase|
|Max. lifting capacity||500kg||500kg|
|Average lifting speed||23m/min||29 m/min|
|Max. working length||40m||40m|
|Steel cable diameter||7mm||7mm|
|Dimensions||860/320/530mm||860 x 320 x 530 mm|
