About the Demag DCM pro Manulift Electric Hoist
The Demag DCM-pro manulift electric hoist whether for a special workbench task or production line application can be a helpful tool. Not only for aiding the use of specific tools but more importantly for helping to increase productivity in a safe way. Adapting the original DC-Pro electric hoist with the addition of the tool handling device this hoist make light work of repair tasks and production line operations.

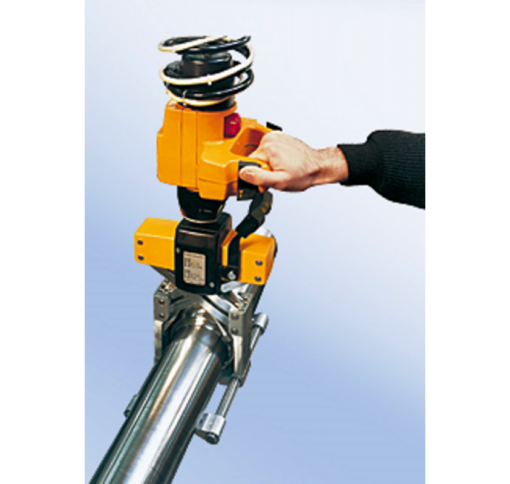

Tools and loads attached to the manulift can be operated with one hand, leaving the other free to manipulate the item you are working on or tools you are using.

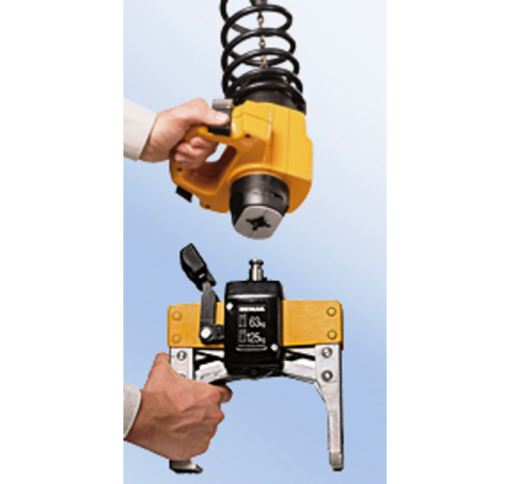

With many attachment available there is something to suit the handling of many items. There are clamps for handling either square or round objects, grippers and a range of hooks. See the image for the full range available. These tools, although not necessarily required they can greatly enhance the manulift hoist when working with specific items. All attachments lock into the hand held manulift and can be changed quickly and easily should you need to use multiple attachments..
Useable with both left and right hands, positioning tools and objects is effortless and can handle loads up to 250kg. The obvious flexibility of this hoist together with its long service life make it a great option.

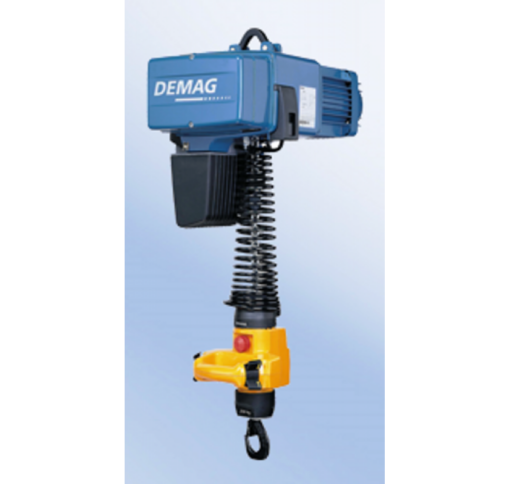

The hoist unit itself consists of upper and lower limit switches, a slip clutch, operating time counter, low wear brakes, fanned cylindrical motor, double encapsulated DC brake and more, you can see the full specifications on the main Demag DC-Pro hoist page.
Other Tool Handling Hoists
This Demag electric hoist has two speeds for good load control, however we can also supply a variable speed model – the Demag DCMS-pro Manulift for optimum load control and precision.
Other electric hoists of this type include the Kito ED tool handling hoist with WLL up to 480kg. There is also a spring balancer from Yale which also aids bench work. We can also supply air powered varieties including the Red Rooster TMM bench hoist and the JDN mini tool handling hoist. As you can see there is plenty of choice at Lifting Hoists Direct. Compare these electric hoists to find the best one to suit your needs then either buy online or call us for a quote on 01384 76961.
|Lifting Capacity (KG)||Manulift DCM-Pro||Lifting speed (m/min)||Hook path (m)||FEM||Reeving||Weight (KG) for hook path|
|80||1||44235||9.6 / 2.4||2.8 and 4.3||4m||44197||22||24|
|125||1||44235||9.6 / 2.4||4m||22||24|
|200||2||44235||9.6 / 2.4||3m||22||24|
|250||2||44235||9.6 / 2.4||2m+ 1)||22||24|
|1) 2m+ corresponds to 1,900 hours at full load|
