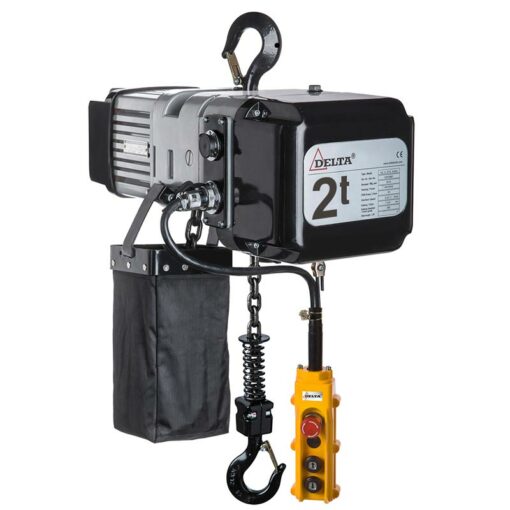

Delta DTS Electric Chain Hoist
The Delta DTS electric hoist comes with 6 metres height of lift as standard and a choice of lifting capacities up to 5000kg. Other options include the suspension type, with a safety hook as standard and push or powered trolley choices. Buy today from Lifting Hoists Direct.
Key Features of the Delta Electric Chain Hoist
The Delta DTS electric chain hoist although not as compact as the Delta DEH electric hoist, has larger lifting capabilities. The smallest model lifts up to 0.25 tonne or 250kg then you have the option of a 500kg, 1000kg, 2000kg, 3000kg or a 5000kg model.
The 6 metres lifting height comes as standard which is double the usual 3 metres you get on other branded hoists. With the dual speed option load movement is more controllable. The slower speed is great for more delicate loads whilst the higher speed will quicken the lifting task, thus maximising output.

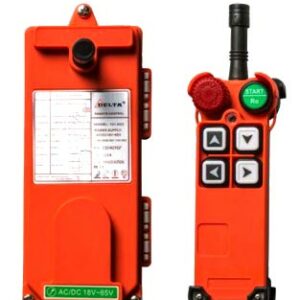

These easy to use hoists are powered by 3 phase, they are easy to operate thanks to the hand held pendant control which has a long 6 metre cable. For even easier operation and from longer distances you can choose the option of a radio remote control system which, with an unobstructed path can be operated from as far as 100 metres.
Highly reliable Siemens contactors are used over more modern circuitry so that in the event of failure/breakdown (it happens occasionally!) each contactor can be changed individually, this is the quickest, easiest and most cost effective method when compared to changing a complete circuit board.
More Hoist Benefits

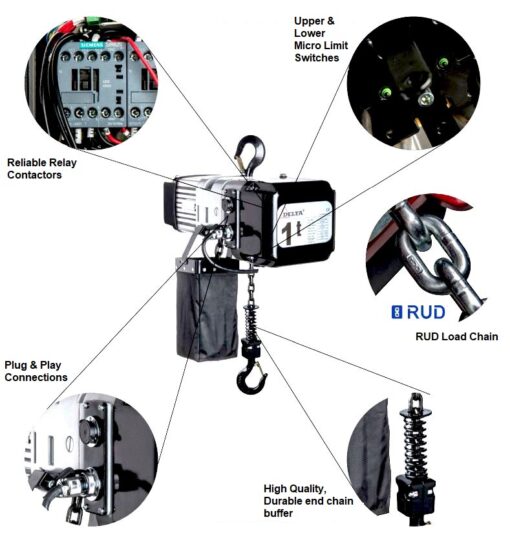

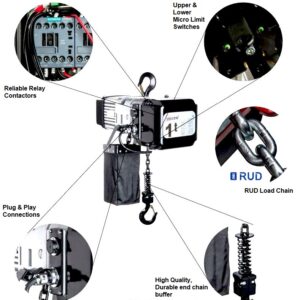

There are numerous benefits to the DTS, not only is this a cost efficient powered lifting hoist there are some great features as standard. Plug and play connectability enable quick changes for suspension and operation modes. Chain bags are included to store any unused quality RUD load chain. At the end of the chain, just before the load hook there is a nifty chain buffer to offer great protection to the bottom block/hook and the hoist body as the load moves up and down. Micro limit switches further enhance this protection by preventing the chain from travelling too far.
For overload protection there is a slip clutch which can be adjusted easily. The spring pressure brake will always hold the load securely, even in the event of a power outage. Further safety features include heat sensors which will prevent motor burn out if it gets too hot.
Delta DTS Electric Hoist with Trolley Option

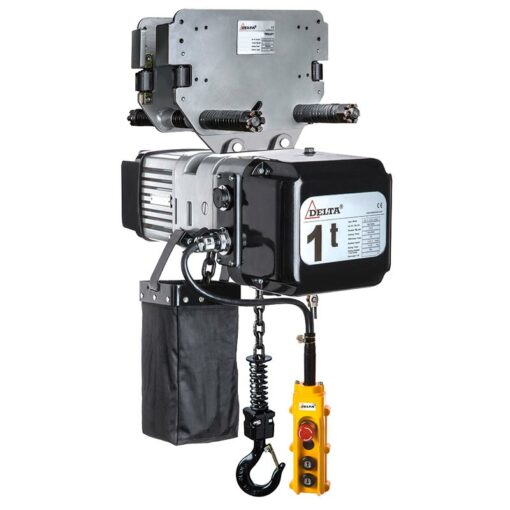

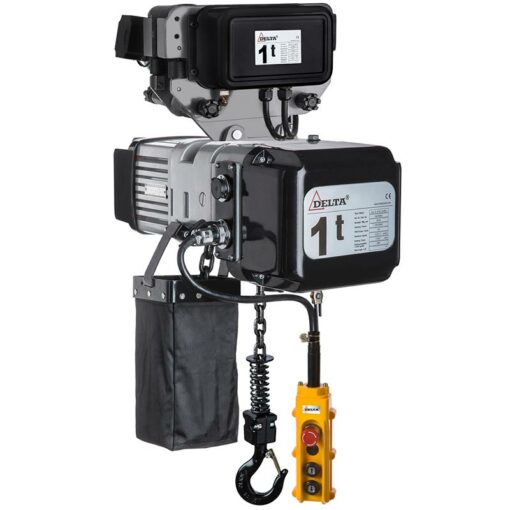

If your hoist will always be used on a beam, such as on a lifting gantry or Jib crane then the Delta DTS electric chain hoist with integral trolley set up would most likely be the best option for you. You can choose from a manual push travel trolley – the cheaper option or the most efficient power drive trolley so that you can quickly and efficiently lift and move your load across the beam with little effort. You can find out all the technical details in the specifications.
Other Electric Hoists
If you would like a similar hoist but smaller in size then take a look at the Delta DEH electric hoist which has most of the great features discussed above with the added bonus of being readily available. Lifting Hoists Direct has many of the most popular electric hoisting systems from leading brands, some can be purchased directly online, for the others just give us a quick call or drop us an email.
Recently Viewed Products
Lifting Shackles
Lifting Shackles
Lifting Shackles
Lifting Shackles
| Model | Capacity | Lifting Speed | Load Chain | Chain Falls | Power Output | Net Weight | Extra Weight |
| kg | m/min | Ø x mm | kW | kg | kg/m | ||
| DTS250 | 250 | 7/2.3 | 5 x 15 | 1 | 0.45/0.15 | 50 | 0.7 |
| DTS500 | 500 | 7.6/2.5 | 6.3 x 19 | 1 | 0.9/0.3 | 51 | 0.9 |
| DTS1000 | 1000 | 5/1.7 | 8 x 24 | 1 | 1.1/.037 | 57 | 1.5 |
| DTS2000 | 2000 | 2.5/0.85 | 8 x 24 | 2 | 1.1/0.37 | 64 | 3 |
| STS3000 | 3000 | 6/2 | 11.2 x 34 | 1 | 3/1 | 116 | 2.7 |
| DTS5000 | 5000 | 3/1 | 11.2 x 34 | 2 | 3/1 | 130 | 5.4 |
| Specifications | |
| Operating Voltage | 400-440V / 50Hz / 3Ph |
| Lifting Speed | Double Speed |
| Load Chain | Load chain according to EN 818-7-DAT/DT |
| Control Cable | Standard 6 metre |
| Power Cable | 1 metre without plug |
| Housing Protection | IP55 |
| Control Protection | IP65 |
| Classification | M5/2m (ISO/FEM) |
| Duty Cycle/Starts per hour | 40% / 240 |
| Insulation Class | F |
| Operating Temperature | -10º - +40º C |
| Protection | |
| Control Switch | 24V pendant control with emergency stop |
| Overload Protection | Externally adjustable slip clutch |
| Brake | Electro-magnetic spring pressure brake to hold load if power fails |
| Limit Switch | Electro-mechanical upper and lower limit switch |
| Thermal Protection | Heat sensor protected |
| DTS Hoist Dimensions (mm) | |||||||||
| Model | A | B | C | D | E | F | H | J | K |
| DTS250 | 307 | 307 | 214 | 80 | 142 | 102 | 460 | 40 | 25 |
| DTS500 | 334 | 307 | 214 | 80 | 142 | 102 | 470 | 40 | 25 |
| DTS1000 | 354 | 307 | 214 | 80 | 142 | 102 | 520 | 45 | 31 |
| DTS2000 | 354 | 307 | 214 | 80 | 185 | 59 | 760 | 53 | 38 |
| DTS3000 | 481 | 336 | 260 | 80 | 185 | 165 | 695 | 53 | 38 |
| DTS5000 | 481 | 336 | 260 | 80 | 240 | 110 | 910 | 75 | 52 |
| DTS With Push Trolley Specs | ||||
| Model | Capacity (kg) | Beam Width (mm) | Net Weight (kg) | Minimum Height (H) mm |
| DTS250 | 250kg | 74-300 | 72 | 480 |
| DTS500 | 5000kg | 74-300 | 73 | 480 |
| DTS1000 | 1000kg | 74-300 | 79 | 510 |
| DTS2000 | 2000kg | 74-300 | 86 | 695 |
| DTS3000 | 3000kg | 88-300 | 158 | 665 |
| DTS5000 | 5000kg | 88-300 | 174 | 885 |
| DTS with Power Trolley Specs | ||||||
| Model | Capacity | Traversing Speed (m/min) | Trolley power output (kW) | Beam Width (mm) | Net Weight (kg) | Minimum height (H) |
| DTS250 | 250kg | 20/6.7 | 0.2/0.07 | 74-300 | 81 | 480 |
| DTS500 | 500kg | 20/6.7 | 0.2/0.07 | 74-300 | 84 | 480 |
| DTS1000 | 1000kg | 20/6.7 | 0.2/0.07 | 74-300 | 90 | 510 |
| DTS2000 | 2000kg | 20/6.7 | 0.4/0.13 | 74-300 | 104 | 695 |
| DTS3000 | 3000kg | 18/6 | 0.4/0.13 | 88-300 | 172 | 665 |
| DTS5000 | 5000kg | 18/6 | 0.75/0.25 | 88-300 | 206 | 885 |
| Push Trolley Dimensions | |||||||
| Model | Capacity (kg) | Minimum radius (m) | Wheel Diameter (mm) | Net Weight (KG) | A | B | C |
| DTS250 | 250 | 2.5 | 68 | 22 | 424 | 75 | 270 |
| DTS500 | 500 | 2.5 | 68 | 22 | 424 | 75 | 270 |
| DTS1000 | 1000 | 2.5 | 68 | 22 | 424 | 75 | 270 |
| DTS2000 | 2000 | 2.5 | 755 | 22 | 424 | 75 | 270 |
| DTS3000 | 3000 | 5 | 96 | 42 | 466 | 110 | 330 |
| DTS5000 | 5000 | 5 | 110 | 44 | 466 | 110 | 334 |
| Power Drive Trolley Dimensions | ||||||||
| Model | Capacity (kg) | Minimum radius (m) | Wheel Diameter (mm) | Net Weight (KG) | A | B | C | D |
| DTS250 | 250 | 2.5 | 68 | 31 | 336 | 130 | 97 | 340 |
| DTS500 | 500 | 2.5 | 68 | 33 | 336 | 130 | 97 | 340 |
| DTS1000 | 1000 | 2.5 | 68 | 33 | 336 | 130 | 97 | 340 |
| DTS2000 | 2000 | 2.5 | 75 | 40 | 338 | 132 | 113 | 340 |
| DTS3000 | 3000 | 5 | 96 | 56 | 340 | 135 | 133 | 370 |
| DTS5000 | 5000 | 5 | 110 | 76 | 410 | 135 | 140 | 410 |
