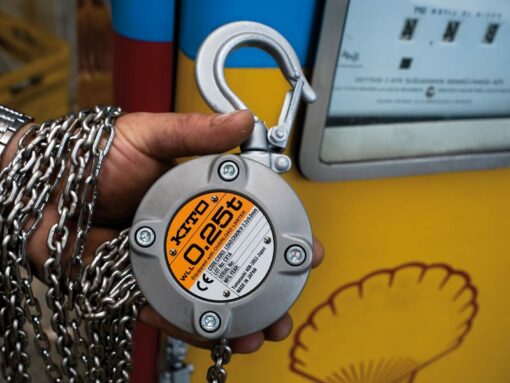

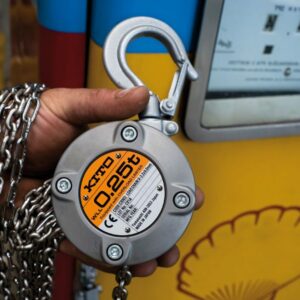

Kito CX Chain Block
Just because the Kito CX chain block is so small, it doesn’t mean it its not powerful. Don’t be put off by its size. With either a 250kg or a 500kg lifting capacity this little manual chain hoist is perfect for everyday tasks and repair work. Designed and manufactures in Japan this hoist has won awards.
With a net weight at just 2.4kg (250kg model) the options for the areas of use for this hoist are endless. Because it can be carried around single handed with ease. Its ultra compact nature also enables it to be used in space restricted areas.
The CX only needs 14.7 daN of force = less than 15kg pulling force to operate making it extremely easy to use. It is also very safe to use thanks to the overload limiters in place. So if a load is too heavy the hand chain will slip through so the load cannot be lifted.
The 3.2mm diameter load chain comes with a 3 meter height of lift as standard. It has a really fine pitch which enables ultra precise movements so loads can be positioned down to a millimetre.
This chain block is both abrasion and corrosion resistant and has an aluminium body with countersunk bolts. The high strength load chain is nickel plated too so it is extremely durable.
Top and bottom hooks feature a safety latch with a tip supporting design, they have a wide internal hook diameter to allow larger items to be fitted easily.
This hoist can be used in the temperature range of -40 to +60 degrees C. It is not suitable for use in environment with alkaline or acidic atmospheres or in organic solvent or explosive atmospheres.
Other Chain Blocks and Manual Hoists
We pride ourselves on keeping prices as low as possible so get in touch on 01384 76961 today. Some hoists can now be purchased safely online for quick delivery. You can also email us with any questions via the contact form.
|Rated Load (WLL) KG||Standard lift (m)||Standard length of hand chain (folded) (m)||Pull to lift full load (daN)||Chain o’hauled to lift load one meter (m)||Load chain diameter (mm) x chain fall lines (mm)||Test load (KG)||Mass (net weight) *₂ (KG)||Shipping weight (KG)||Mass (weight) for additional one meter of lift (KG/M)||Dimensions|
|250||3||2||14.7||33.8||3.2 x 9.0||375||2.4||2.6||0.4||88||84||217||53||37||21||32||11|
|500||3||2.5||18.7||42.8||4.3 x 12.1||750||4.5||4.7||0.9||101||102||260||66||44||24.5||35.5||12|
