Stahl ST Electric Chain Hoist

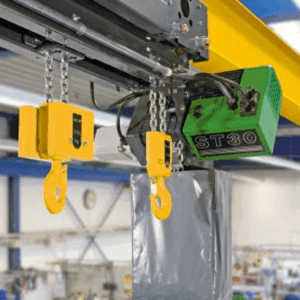

The Stahl electric chain hoist enables innovative hoisting solutions thanks to its modular design. Not only can it be used as a standard electric chain hoist, it can be assembled in many different combinations in order to lift loads in awkward situations. Such as the STD dual chain hoist, with its 2 pickup points it is ideal for handling long loads and can be configured in many ways; or a version suitable for wind turbines, big bag handling hoists are another option. There are also a number of trolley systems allowing a range of configurations with the Stahl ST electric chain hoist. A further bonus of the ST hoist is the range of suspension options; these are hook, eye and rigid suspensions as well as foot mounting options. With 6 models available in a range of lifting capacities up to 6300kg, there will be a Stahl ST electric chain hoist to suit your lifting application.
Key Features of the Stahl ST Electric Chain Hoist

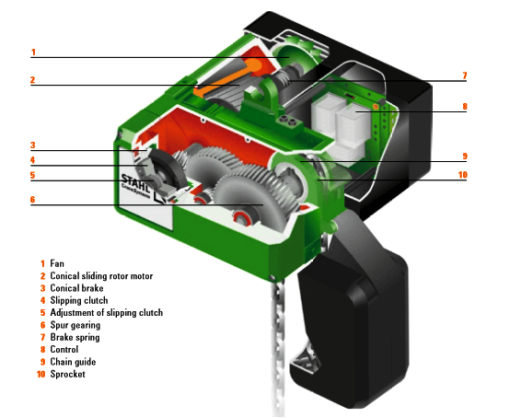

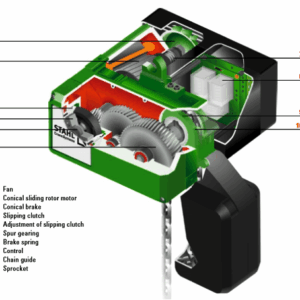

The components which make the Stahl ST Chain hoist one of the best are all made to the highest quality using the latest technology, to ensure high efficiency, continual performance and a long service life.
MOTOR; The high power motor has 2 hoisting and travel speeds for precise positioning; standard fan cooling, and Ptc thermistor temperature control all to high standard in accordance with FEM.
CHAIN DRIVE; Load bearing & anchorage components are incorporated into the solid cast iron chain guide enabling load support where it engages; enclosed, self-lubricating chain guide; water resistant chain sprocket with optimised return sheaves for low chain wear; easy inspection of the chain sprocket due to the over-mounted shaft bearing.
BRAKE: The electro-magnetic disc brake is asbestos free and needs little maintenance; oversized braking torque; safe, even in inching operation; wear to the brake can be checked. The brake is totally enclosed and therefore well protected from ingress of foreign particles.
OVERLOAD: the overloading protection comes from the slip clutch and gear, (On ST10 to ST60 clutch is in the oil-cooled gear); Easy to adjust; no electronic limiting needed; Gear reductions available.
CONTROL: All control voltages and connections are available; control pendant and travel motor have plug connection; Contactors have a clear arrangement; other options available including, direct control & without control pendant and/or contactor control.
CHAIN & BOX: The chain stores easily in the chain box which can be plastic, steel or textile. The load chain is made from hardened galvanised steel to a high FEM classification.
OTHER OPTIONS: Standard control pendants, radio remote control and RMI ‘radiomoveit’ radio control available. SMC multi controller; SSC cumulative load control; operational hoist limit switch; steel chain guide; bypass brake; vibration dampener; load display and slip clutch test device.
Mounting the Stahl ST Chain Hoist
There are a number of ways to mount the Stahl ST electric chain hoist; the standard is the hook suspension which is ideal if the hoist will need to be moved often. Instead of the hook you could choose the ‘eye’ option which is ideal if the hoist will nearly always used in the same place and/or need a lower headroom option; or you could choose the rigid suspension for a more permanent mounting option, this option gives you the lowest headroom mounting.
It is also possible to base or foot mount the ST chain hoist by bolting from below the hoist, this can be useful for very low ceiling areas.

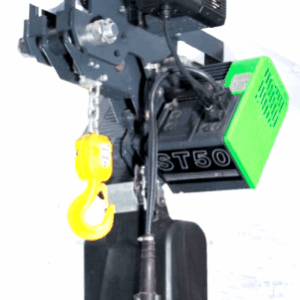

Trolley Systems for the Stahl ST Chain Hoist
There are a choice of trolley options to compliment the ST chain hoist including push travel and electric options:
PUSH TRAVEL TROLLEY: This is a standard trolley system for hook or eye mounted hoists is very smooth running.
DUE Articulated Trolley: This special trolley system is ideal for frequent travel around bends and curved track. Dependent upon the bend radius and flange width the trolley may have one or two motors. The lateral rollers enable minimal wear and it can be used for loads up to 6300kg.
Electric Trolley – Standard Headroom: A smooth running electric trolley with short headroom to enable long hook paths.
Electric Trolley – Short Headroom: When used with the ST hoist in its short headroom configuration the headroom is reduced by a further 33%
Electric Trolley – Extra Short Headroom: The STK trolley provides the shortest possible headroom, up to around 60% in fact. This can be tremendously beneficial for low ceiling buildings.
Specifications
Capacity | FEM | m/min | Type | Motor data | Chain collectors for greater lifting heights | ||||||
kW | %ED | c/h | Hoist type | Single fall | Two fall | Material | |||||
125 | 3m (M6) | 8/2 | ST 0501-8/2 1/1 | 0.2/0.05 | 35/15 | 240/480 | ST05 | 7 | 3.5 | Plastic | |
2m (M5) | 16/4 | ST 0501-16/4 1/1 | 0.4/0.1 | 35/15 | 120/240 | 15 | 7.5 | Steel | |||
250 | 1Am (M4) | 8 | ST 0502-8 1/1 | 0.4 | 40 | 240 | ST10 | 12 | 6 | Plastic | |
8/2 | ST 0502-8/2 1/1 | 0.4/0.1 | 35/15 | 120/240 | 25 | 12.5 | Textile | ||||
500 | 1Am (M4) | 4 | ST 0502-8 2/1 | 0.4 | 40 | 240 | ST20 | 8 | 4 | Plastic | |
4/1 | ST 0502-8/2 2/1 | 0.4/0.1 | 35/15 | 120/240 | 16 | 8 | Textile | ||||
8 | ST 1005-8 1/1 | 0.8 | 60 | 360 | 22 | 11 | Textile | ||||
8/2 | ST 1005-8/2 1/1 | 0.8/0.2 | 40/20 | 120/240 | ST32 | 6 | 3 | Plastic | |||
1000 | 1Am (M4) | 4 | ST 1005-8 2/1 | 0.8 | 60 | 360 | 12 | 6 | Textile | ||
4/1 | ST 1005-8/2 2/1 | 0.8/0.2 | 40/20 | 120/240 | 20 | 10 | Textile | ||||
2m (M5) | 8 | ST 2010-8 1/1 | 1.5 | 60 | 360 | ST30 | 6 | 3 | Plastic | ||
8/2 | ST 2010-8/2 1/1 | 1.5/0.37 | 40/20 | 120/240 | 10 | 5 | Textile | ||||
1600 | 1Bm (M3) | 8 | ST 3016-8 1/1 | 2.3 | 60 | 360 | 20 | 10 | Textile | ||
8/2 | ST 3016-8/2 1/1 | 2.3/0.57 | 40/20 | 120/240 | ST50 | 8 | 4 | Textile | |||
8/2 | ST 3216-8/2 1/1 | 2.4/0.6 | 40/20 | 120/240 | 12 | 6 | Textile | ||||
2000 | 2m (M5) | 4 | ST 2010-8 2/1 | 1.5 | 60 | 360 | 30 | 15 | Steel | ||
4/1 | ST 2010-8/2 2/1 | 1.5/0.37 | 40/20 | 120/240 | |||||||
2500 | 1Am (M4) | 6.3/1.5 | ST 5025-6/1 1/1 | 3.0/0.76 | 40/20 | 120/240 | |||||
8/2 | ST 5025-8/2 1/1 | 3.8/0.9 | 33/17 | 100/200 | |||||||
3200 | 1Bm (M3) | 4 | ST 3016-8 2/1 | 2.3 | 60 | 360 | |||||
4/1 | ST 3016-8/2 2/1 | 2.3/0.57 | 40/20 | 120/240 | |||||||
2m (M5) | 4/1 | ST 3216-8/2 2/1 | 2.4/0.6 | 40/20 | 120/240 | ||||||
5000 | 1Am (M4) | 3.2/0.75 | ST 5025-6/1 2/1 | 3.0/0.76 | 40/20 | 120/240 | |||||
4/1 | ST 5025-8/2 2/1 | 3.8/0.9 | 33/17 | 100/200 |

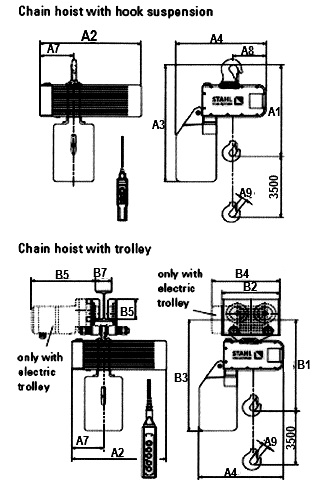

Dimensions
KG | 250 | 500 | 1000 | 2000 | 3200 | 5000 | 6300 | |
2 hoisting speed | m/min | 44235 | 44200 | 44200 | 44200 | 44200 | 3.2/0.75 | 3.2/0.75 |
Chain falls | 1 | 2 | 2 | 2 | 2 | 2 | 2 | |
Type | ST 0502 | ST 0502 | ST 1005 | ST 2010 | ST 3016 | ST 5025 | ST 6032 | |
Output | kW | 0.4/0.1 | 0.4/0.1 | 0.8/0.2 | 1.5/0.37 | 2.3/0.57 | 3.0/0.76 | 3.8/0.9 |
Duty cycle | % ED | 50 | 50 | 60 | 60 | 60 | 60 | 50 |
Dimensions | ||||||||
Chain hoist with hook suspension | A1 | 367 | 428 | 432 | 547 | 575 | 697 | 697 |
A2 | 238 | 238 | 402 | 496 | 496 | 522 | 522 | |
A3 | 385 | 385 | 514 | 590 | 677 | 664 | 664 | |
A4 | 281 | 281 | 352 | 398 | 393 | 466 | 466 | |
A7 | 145 | 145 | 135 | 181 | 181 | 206 | 206 | |
A8 | 153 | 153 | 133 | 158 | 158 | 154 | 154 | |
A9 | 20 | 26 | 24 | 29 | 33 | 41 | 41 | |
Chain hoist with trolley | B1 | 413 | 474 | 437 | 545 | 586 | 707 | 707 |
B2 | 164 | 164 | 242 | 302 | 310 | 480 | 480 | |
B3 | 425 | 425 | 519 | 589 | 689 | 672 | 672 | |
B4 | / | / | / | 330 | 338 | 480 | 480 | |
B5 | 62 | 62 | 96 | 102 | 113 | 149 | 149 | |
B6 | / | / | / | 289 | 341* | 403* | 403* | |
B7 | 42…180 | 42…180 | 58…300 | 66…300 | 66…300 | 82…300 | 82…300 | |
Weights | ||||||||
With hook suspension | 16 | 18 | 41 | 75 | 82 | 136 | 150 | |
With trolley | 24 | 26 | 53 | 110 | 130 | 201 | 215 | |
* The travel motor is mounted on the opposite side |
Options
Standard | Options | ||
Ambient Temperature | -20°c up to +40°c | to +50°c | |
Protection to IEC/EN 60529 | IP55 | IP66 | |
Paint | Colour | Greyish black/yellow-green RAL 7021/6018 | All other colours from RAL colour chart |
DFT | 80μm | 120μm to 240μm | |
Paint | Polyurethane topcoat | Epoxy-resin base (240μm) | |
Control Pendants | STH 1 control pendant with emergency stop palm button | Radio remote control in push button or joystick version | |
Move it one-hand control switch | |||
Control | Contactor control including main contactor | For crane manufacturers, contactor control without transformer and without crane switch contactor | |
Direct control (ST05-ST20) | |||
Hoist motor control | Pole-changing | Frequency controlled | |
Travel motor control | 50Hz | 20 m/min | 2.5/10 m/min and 5/20 m/min |
60Hz | 25 m/min | 3.2/12.5 m/min and 6.3/25 m/min pole-changing or frequency controlled | |
Motor supply voltage | 50Hz/60Hz | 380-415V ST05 also 380-400V or 415V | All voltages possible |
Chain | Grade 8 to DIN 5684 | Galvanised | Stainless steel chain, off-standard chain (hardened) |
Safety Factor | >5.0 | / | |
Chain Guide | Grey cast iron EN GJS | Sandwich chain guide made of hardened spring steel plates | |
Chain box | Plastic, textile | Sheet steel | |
Load lifting elements | Load hook in bottom hook block | Thread bar, VAGH safety load hook | |
Galvanised load hook | |||
Limit switches | / | Emergency hoist limit switch (gear limit switch) | |
Travel limit switch | / | For up to four switching functions- pre and end limiting in both directions of travel, carriage spacing | |
Overload cut-off | Slipping Clutch | Load sensor | |
Signal transmitter | / | Horn, flashing light | |
Visualisation | / | SLD large-format load display, display in control pendant, readable on PC | |
Data exchange | / | with PC | |
Cumulative load controller | / | SSC | |
Temperature control of travel motors | / | Ptc thermistors | |
Mechanical safety devices | / | Wheel arrestors | |
Guide rollers for wide flange widths dependent on trolley type | Guide rollers for narrow flange widths | ||
Support rollers for trolleys | / | ||
Hoist brake | Monodisc spring-loaded brake with asbestos-free brake linings | Manual release of hoist brake | |
Bypass brake, double brake | |||
Data recording | / | Operating hours counter | |
Panel box | Plastic (Terluran 969 T) | ST10-ST60 sheet steel (S 235 JR) |
