Kito CB Chain Block

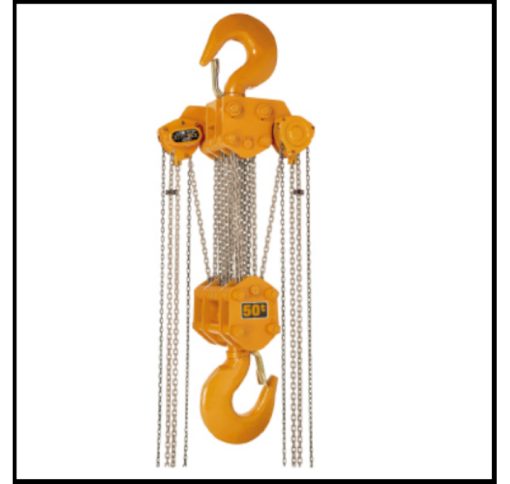

The CB chain block or block and tackle from leading brand Kito has a vast range or working load limits to choose from right up to 50 tonnes. Light in weight with great durability you can be assured of easy and safe lifting with this manual chain hoist.
About the Kito CB Chain Block

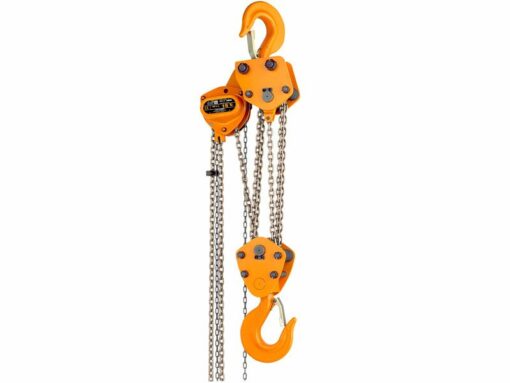

The Kito CB chain block provides smooth and consistent lifting operations. It is both sturdy and reliable thanks to its steel construction with premium quality components.
This manual chain hoist incorporates a shock resistant gear casing as well as a double pawl ratchet spring system, high performance precision gearbox with sealed gears and for protection against dust and water ingress, double casing.
Kito CB Chain Block Elements
Other key features include a mechanical braking system and a load chain guide for quiet and easy operation, with an abrasion resistant nickel plated load chain to give it a longer service life. With a slip clutch option to provide an overload limiter this hoist could be even safer. Chain containers and trolley options are also available if required.
The manual force needed to operate the hoist is kept to a minimum thanks to the double reduction gearing whilst the brake activates instantly to hold the load firmly. There is an open load sheave to facilitate easier inspection and cleaning.
The top hook articulates to enable the load to be centred correctly. It is made from forged carbon steel and has a wide opening with a safety latch.
The standard lifting height is 3 meters on models up to 7500kg and 3.5 meters for all models over this capacity. You can find out all the technical specifications in the table below.
Other Kito Hoists
Lifting Hoists Direct can supply a range of Kito hoisting devices at great prices. Other Kito chain blocks include the CX with SWL up to 250kg and the CF with SWL up to 3000kg. We also supply Kito ratchet lever hoists or pull lifts with the LB and LX models to choose from. There are 3 electric hoists, the ED with single or dual speed options up to 480kg with tool handling device, the EQ dual speed hoist with SWL up to 1000kg and the ER single OR dual speed electric hoist with SWL up to 20000kg (single speed).
As you can see Kito has many types of hoisting devices available and are renowned for quality and reliability.
Looking for other brands? No problem, we can supply all types of hoists from all the leading brand names including Yale, Demag, Stahl, Tiger and more, we also do more economic options in manual hoisting equipment like the LGD chain block and lever hoist, there are many choices available on the Lifting Hoists Direct website so browse away! Get in touch if you need help, 01384 76961 or email us on the contact page.
| Size Required (Kito CB) | 500KG x 3MTR HOL | CB005, 500KG x 6MTR HOL | CB005, 1000KG x 3MTR HOL | CB010, 1000KG x 6MTR HOL | CB010, 1500KG x 3MTR HOL | CB015, 1500KG x 6MTR HOL | CB015, 2000KG x 3MTR HOL | CB020, 2000KG x 6MTR HOL | CB020, 2500KG x 3MTR HOL | CB025, 2500KG x 6MTR HOL | CB025, 3000KG x 3MTR HOL | CB030, 3000KG x 6MTR HOL | CB030, 5000KG x 3MTR HOL | CB050, 5000KG x 6MTR HOL | CB050, 7500KG x 3MTR HOL | CB075, 7500KG x 6MTR HOL | CB075, 10000KG x 3MTR HOL | CB100, 10000KG x 6MTR HOL | CB100 |
|---|
Specifications
| Rated Load (WLL) (T) | Code | Std. Lift (m) | Hand chain folded length (m) | Chain pull to lift full load (N) [kgf] | Chain o'hauled to lift load one meter (m) | Load chain dia x chain fall (mm) | Test load (t) | Mass [Net weight] (KG) | Shipping mass weight approx (KG) | Mass weight in KG for additional one meter of lift (KG) |
| 0.5 | CB005 | 2.5 | 2.5 | 235 [24] | 25 | 5 x 1 | 0.75 | 10 | 10.5 | 1.5 |
| 1 | CB010 | 2.5 | 2.5 | 284 [29] | 43 | 6.3 x 1 | 1.5 | 11.5 | 12 | 1.8 |
| 1.5 | CB015 | 2.5 | 2.5 | 343 [35]* | 57 | 7.1 x 1 | 2.4 | 14.5 | 15 | 2.1 |
| 2 | CB020 | 3 | 3 | 353 [36]* | 70 | 8 x 1 | 3 | 20 | 21 | 2.3 |
| 2.5 | CB025 | 3 | 3 | 323 [33]* | 99 | 9 x 1 | 3.8 | 27 | 28 | 2.7 |
| 3 | CB030 | 3 | 3 | 353 [36]* | 114 | 7.1 x 2 | 4.8 | 24 | 26 | 3.2 |
| 5 | CB050 | 3 | 3.5 | 333 [34]* | 198 | 9 x 2 | 7.5 | 41 | 43 | 4.4 |
| 7.5 | CB075 | 3.5 | 4 | 343 [35]* | 297 | 9 x 3 | 9.5 | 63 | 66 | 6.2 |
| 10 | CB100 | 3.5 | 4 | 353 [36]* | 396 | 9 x 4 | 12.5 | 83 | 91 | 7.9 |
| 15 | CB150 | 3.5 | 4.5 | 363 [37]* | 594 | 9 x 6 | 20 | 155 | 165 | 11.4 |
| 20 | CB200 | 3.5 | 4.5 | 353 [36] X2* | 396x2 | 9 x 8 | 25 | 235 | 305 | 15.8 |
| 30 | CB300 | 3.5 | 4.5 | 421 [43] X2* | 495x2 | 9 x 10 | 40 | 310 | 400 | 19.2 |
| 40 | CB400 | 3.5 | 4.5 | 421 [43] X2* | 693x2 | 9 x 14 | 50 | 480 | 630 | 26.2 |
| 50 | CB500 | 3.5 | 4.5 | 480 [49] X2* | 792x2 | 9 x 16 | 62.5 | 640 | 790 | 29.7 |
| • Other capacities are available upon request • Any lift of chain is available upon request • As Kito chains are heat treated, splicing of the load chain is prohibited • When ordering, specify lifting height | ||||||||||
Dimensions
| Rated load (WLL) (t) | Headroom :C | A | B | D | E | F | G | S | T | U | V | W | X |
| 0.5 | 285 | 158 | 161 | 2500 | 69 | 99 | 27 | 35.5 | 12.1 | 17 | 77 | 35 | 89 |
| 1 | 295 | 162 | 161 | 2500 | 71 | 99 | 29 | 42.5 | 16 | 21.8 | 93 | 41 | 101 |
| 1.5 | 350 | 171 | 182 | 2500 | 78 | 112 | 34 | 47.5 | 19.5 | 26.5 | 106 | 47 | 119 |
| 2 | 375 | 182 | 202 | 3000 | 87 | 125 | 36 | 50 | 21.8 | 30 | 116 | 49 | 124 |
| 2.5 | 420 | 192 | 233 | 3000 | 91 | 143 | 40 | 53 | 24.3 | 33.5 | 126 | 53 | 136 |
| 3 | 510 | 171 | 235 | 3100 | 78 | 162 | 42.5 | 56 | 27.2 | 37.5 | 138 | 57 | 148 |
| 5 | 600 | 192 | 282 | 3600 | 91 | 194 | 46.5 | 63 | 34.5 | 47.5 | 161 | 67.5 | 172 |
| 7.5 | 770 | 192 | 373 | 4200 | 91 | 253 | 72.5 | 85 | 47.5 | 63 | 231 | 97.5 | 275 |
| 10 | 760 | 192 | 438 | 4200 | 111 | 308 | 72.5 | 85 | 47.5 | 63 | 231 | 97.5 | 295 |
| 15 | 1020 | 268 | 492 | 4700 | 119 | 337 | 80 | 100 | 60 | 80 | 275 | 110 | 320 |
| 20 | 1180 | 374 | 746 | 4800 | 187 | 373 | 81 | 110 | 67 | 90 | 301 | 125 | 351 |
| 30 | 1300 | 404 | 746 | 4800 | 202 | 373 | 103 | 125 | 85 | 112 | 367 | 143 | 400 |
| 40 | 1480 | 502 | 760 | 4900 | 251 | 380 | 96 | 145 | 123 | 133 | 412.5 | 182.5 | 445 |
| 50 | 1560 | 544 | 796 | 4900 | 272 | 398 | 100 | 165 | 135 | 155 | 447.5 | 202.5 | 467 |
