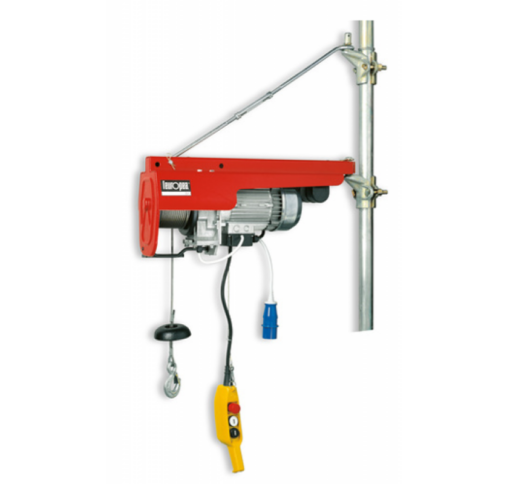

About the TEA L’Europea HE 200 Scaffold Hoist
This well balanced scaffold hoist matches speed with load capacity for good cycle rates. It can lift up to 200kg and has a top lifting speed of 23 meters per minute. The cable length is 25 meters long making it easy to lift your materials up to higher levels. Lowering your materials and tools at the end of the day is also made easy with the HE 200 scaffold hoist.
This builders scaffold hoist comes with two scaffold brackets with a supporting arm to ensure good stability, and will fit standard scaffolding poles easily. It incorporates a pendant control as standard but if you want even more accessible controls then you can opt for a radio control version to enable the operation of the hoist from multiple locations.
110v models are available to suit your power supply and has a robust single phase motor.
Key Features of the HE 200 Scaffold Hoist at a Glance
- Maximum lifting capacity of 200kg
- 750W engine power
- 110v option and 50Hz frequency
- Single phase motor
- 25 meter cable length with a 5mm diameter (max of 35m lengths available)
- 23 meters per minute maximum lifting speeds
- 23.26kN cable breaking point under load
- 37kg in weight
- Hoist dimensions; 690mm x 210mm x 350mm.
Other Scaffold Hoists & Builders Gantry Hoists
The HE 235 is popular amongst construction sire workers whilst the HG 200 offers a different option and acts more like a winch due to the main unit being floor/ base mounted. You will also see a range of gantry hoists which are ideal when a scaffolding tower is not available.
If you would like to speak to us about scaffold hoists give us a call on 01384 76961 where you can speak to the team and get any questions answered. You may prefer to email us which can be done on the contact page.
