About the Imer ET 150n Scaffold Hoist
This Imer ET 150n scaffold hoist from leading manufacturer of construction equipment Imer is easy to fit to a scaffold pole with scaffold clamps. Alternatively you could use a pole accessory. This will help to spread the forces more evenly across the scaffolding for additional safety and support.

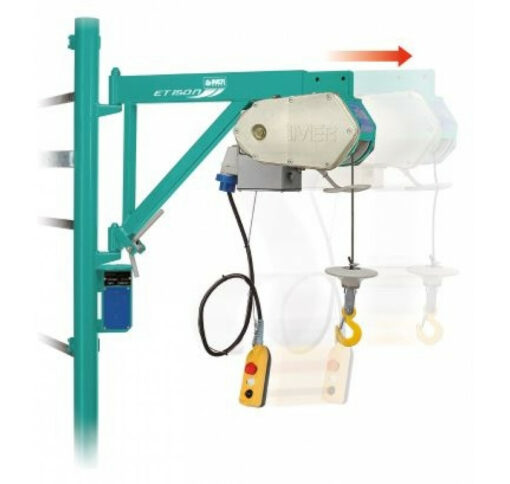

Unlike the ES150n which is fixed, the ET model incorporates a telescopic extension frame. This enables the hoist to be extended further out to make lifting loads over the side of a building much easier, especially if there are obstructions in the way. Up to 400mm of extra reach can be achieved up to the maximum 1120mm. However far you extend the hoist out, the working load limit will not need to change, meaning maximum lifting capacity can be reached in any position.
The maximum working height for the ET150 is 40 meters and the average lifting speed when fully loaded can reach 30 metres per minute. This builders scaffold hoist comes with 41 meters of quality steel wire rope which is 4mm in diameter. You can find out more technical details in the table below.
Standard Features of the Imer ET 150n Builders Scaffold Hoist
Work positioning lever
upper limiting device
self braking motor with magnetic device
Pendant control system classified to IP65
4mm diameter, 41m wire rope
The fast lifting speeds at full capacity, together with the extendable frame makes the ET150n scaffold hoist a great option for use on construction sites; productivity will be increased and risks are minimised. There is also a great selection of accessories available for use with this hoist. Including a range of pole attachments, tipping buckets, barrow slings, brick baskets and more all developed to enhance your hoist.
Other Scaffold and Builders Gantry Hoists
There is a great choice of scaffold hoists here at Lifting Hoists Direct, however we also have a range of builders gantry hoists which are similar although they do not use a scaffold pole; instead they fit to a separate gantry frame with counter balance ballast boxes. These are ideal if scaffolding is not available.
Help and advice can always be obtained from Lifting Hoists Direct whether over the phone or by email. Find our contact details on the contact us page or use the rapid enquiry form.
|ET 150 N|
|Av. Full load lifting speed||m/min||30|
|Max. Working height||m/min||40|
|Wire rope diameter||mm||4|
|Motor power rate||kW||0.8|
|Motor running current||A||7.1|
|SPL in operator position||dB(A)||<72|
|packing dimensions w/l/h||mm||350/820/550|
