Yale VSIII Chain Block
£110.85 – £516.83
Updated and improved the Yale VSIII (VS3) manual chain hoist is a robust hoisting device capable of lifting loads up to 5000kg.
About the Yale VSIII Chain Manual Chain Hoist
The Yale VSIII chain block (Yale VS3)is an updated version of the older Yale VS plus manual chain hoist and removes any niggles that you may have encountered with the older model.
These Yale VS3 chain blocks are easy and efficient to operate with optimization of the hand forces and the smoothest yet in operation.
The hand chain guide has been greatly improved to alleviate the problems of tilting and/or jamming; the hand chain now runs smoothly every time with no jams.
Other Yale VSIII Chain Block Features

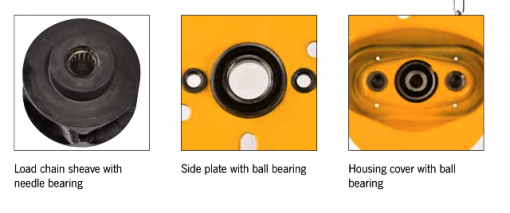

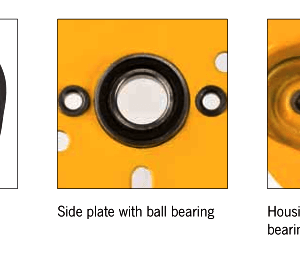

The load chain sheave uses high quality needle bearings to maximise its working life which is now even longer. There are the precision machined rollers guide the chain so they run smoothly throughout operation. The gearbox and the side plates also consist of high quality ball bearings to enhance longevity.

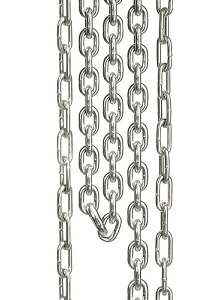

This chain block is a robust piece of hoisting equipment and incorporates a reinforced hand wheel cover and strong bolts in-between the side plates and main housing cover. These help to protect internal parts as well as adding increased stability to the chain block. The guide rollers and brake components are zinc plated & yellow-chromated to higher the corrosion protection. The load chain comes with zinc plating as standard.
Lifting Hoists Direct Can supply the Yale VS3 manual chain hoist in lifting capacities up to 5000kg with a 3 metre height of lift as standard. It is possible for us to re-chain the hoist with longer lengths if required at additional cost per metre.

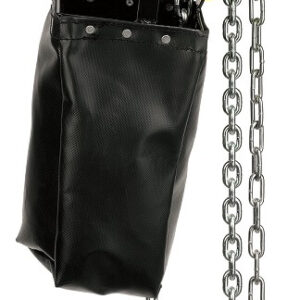

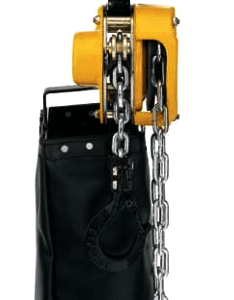

There are a couple of optional extras available to further enhance this chain block. Options include an overload protection device for extra safety and a chain container to hold excess chain out of the way. Pease let us know when ordering if you require these options. Ordering is quick and easy, simply call our sales team on 01384 75182 or contact us via email using out contact us page or rapid enquiry form button.
Specifications
| Model | Capacity in kg/number of chain falls | Chain dimensions d x p (mm) | Lift per 1m hand chain overhaul (mm) | Pull on hand chain at WLL daN | Weight at standard lift (3m) KG |
| VSIII 0.25/1 | 250/1 | 4 x 12 | 50 | 20 | 3.9 |
| VSIII 0.5/1 | 500/1 | 5 x 15 | 26 | 21 | 9 |
| VSIII 1/1 | 1000/1 | 6 x 18 | 24 | 24 | 11.5 |
| VSIII 1.5/1 | 1500/1 | 8 x 24 | 17 | 30 | 17.5 |
| VSIII 2/1 | 2000/1 | 8 x 24 | 19 | 32 | 19 |
| VSIII 2/2 | 2000/2 | 6 x 18 | 15 | 29 | 17.3 |
| VSIII 3/1 | 3000/1 | 10 x 30 | 12 | 40 | 31 |
| VSIII 3/2 | 3000/2 | 8 x 24 | 10 | 37 | 27 |
| VSIII 5/2 | 5000/20 | 10 x 30 | 8 | 41 | 43 |
Dimensions
| Model | VSIII 0.25/1 | VSIII 0.5/1 | VSIII 1/1 | VSIII 1.5/1 | VSIII 2/1 | VSIII 2/2 | VSIII 3/1 | VSIII 3/2 | VSIII 5/2 |
| A min,mm | 290 | 350 | 380 | 450 | 460 | 490 | 570 | 580 | 700 |
| B,mm | 12 | 21 | 28 | 33 | 36 | 36 | 45 | 45 | 47 |
| C,mm | 26 | 23 | 27 | 36 | 35 | 35 | 40 | 40 | 45 |
| D,mm | 11 | 16 | 20 | 22 | 29 | 29 | 29 | 29 | 40 |
| E,mm | 118 | 145 | 158 | 180 | 205 | 170 | 240 | 220 | 250 |
| F,mm | 113 | 140 | 155 | 175 | 180 | 155 | 210 | 175 | 190 |
| G,mm | 65 | 80 | 87 | 85 | 94 | 87 | 110 | 94 | 95 |
| H,mm | 48 | 60 | 68 | 90 | 86 | 68 | 100 | 81 | 95 |
| K,mm | 190 | 240 | 270 | 300 | 320 | 285 | 370 | 340 | 410 |
| Weight | 9 kg |
|---|---|
| Size Required (Yale VSIII CB) | 500KG x 3MTR HOL, 500KG x 6MTR HOL, 1000KG x 3MTR HOL, 1000kg x 6MTR HOL, 2000KG x 3MTR HOL, 2000KG x 6MTR HOL, 3000KG x 3MTR HOL, 3000KG x 6MTR HOL, 5000KG x 3MTR HOL, 5000KG x 6MTR HOL |
